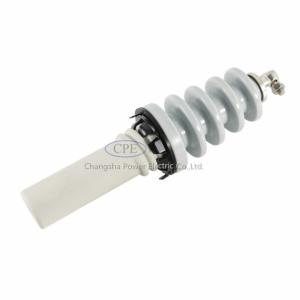

HV Transformer Porcelain Bushing ANSI Standard Height 580mm 150BIL

Brand Name : CPE

Model Number : 15kV

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000PCS PER MONTH

Delivery Time : 35DAYS

Packaging Details : WOODEN CRATE

Color : Light gray

Material : Porcelain C-110

Application : Transmission and distribution of electric power

Standard : ANSI

Sample : Provided

Oem : YES

Size : Customized Size

Pack : Standard export packing

Contact Now

HV Height 580mm 150BIL Transformer Porcelain Bushing Porcelain ANSI Standard

Description:

ANSI CLASS	Height(mm)	Creepage distance (mm)	Dry arcing distance (mm)	BIL(kV)	Torsion strength (N.m)
15kV	338	280	160	95	20.3

Porcelain insulators acc. To IEC, ANSI and customer standards are produced with cylindrical, conical or straight inner and outer appearance up to a maximum length of 2800mm in one piece. These insulator types are produced to withstand high mechanical forces such as inner pressure and cantilever.

Applications:

The bushings are used for oil type distribution transformer.

Specifications:

Material:Electrical porcelain

Applied Standard: ANSI

We offer 2-3 years quality guarantee.

Bushings have excellent performance due to many years' exporting experience.

OEM design available upon customer’s requirement or special technical specifications.

Product Tags:

580mm Transformer Porcelain Bushing

15kV Transformer Porcelain Bushing

ANSI Hv Bushing Of Transformer
