22kv Gas Insulated Bushing

Brand Name : CPE

Model Number : 394-1

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 3000PCS PER MONTH

Delivery Time : 35DAYS

Packaging Details : WOODEN CRATE

Color : White

Material : Porcelain C-110

Application : Transmission and distribution of electric power

Standard : IEC

Product name : Gas insulated transformer bushing

Sample : Provided

Oem : YES

Pack : Standard export packing

Contact Now

22kv Gas insulated transformer bushing/white color/excellent appearance

Description:

Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current

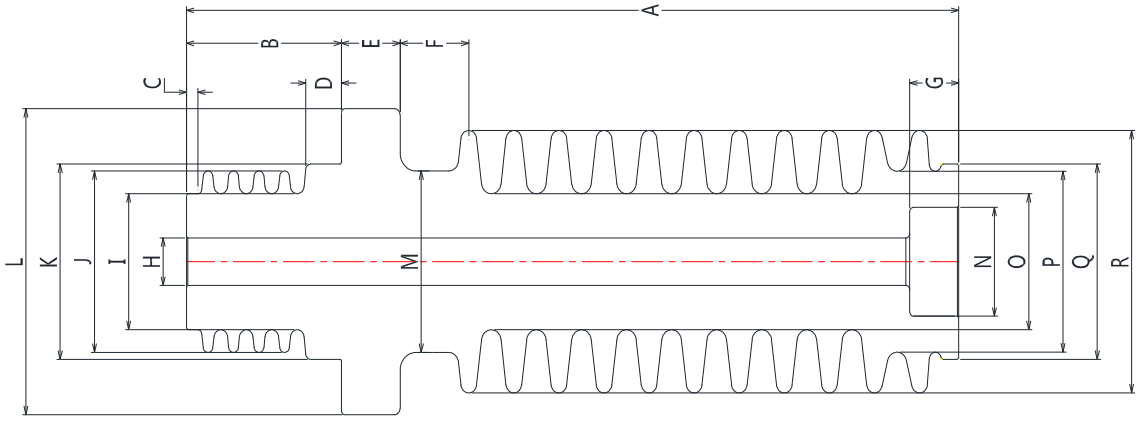

Specifications:

22kv Gas Insulated Bushing

1. Total height: 394mm

2. Shed dia.: 130mm

3. Creepage distance: ≥ 600 mm

4. Surface treatment must be smooth, no trace or holes.

5. Impulse 125kV, withstandard 50kV/1 min. IEC 60137 Edition 6.0 : 2008-07

Applications:

Gas insulated porcelain bushings are used for SF6 gas insulated load break switch.

Competitive Advantages:

1. we offer 1 years up to 2 years quality guarantee for our product .

2. The insulator finish are smooth and shinning , it has very good self-cleaning performance and easy for maintenance.

3. OEM design are available.
